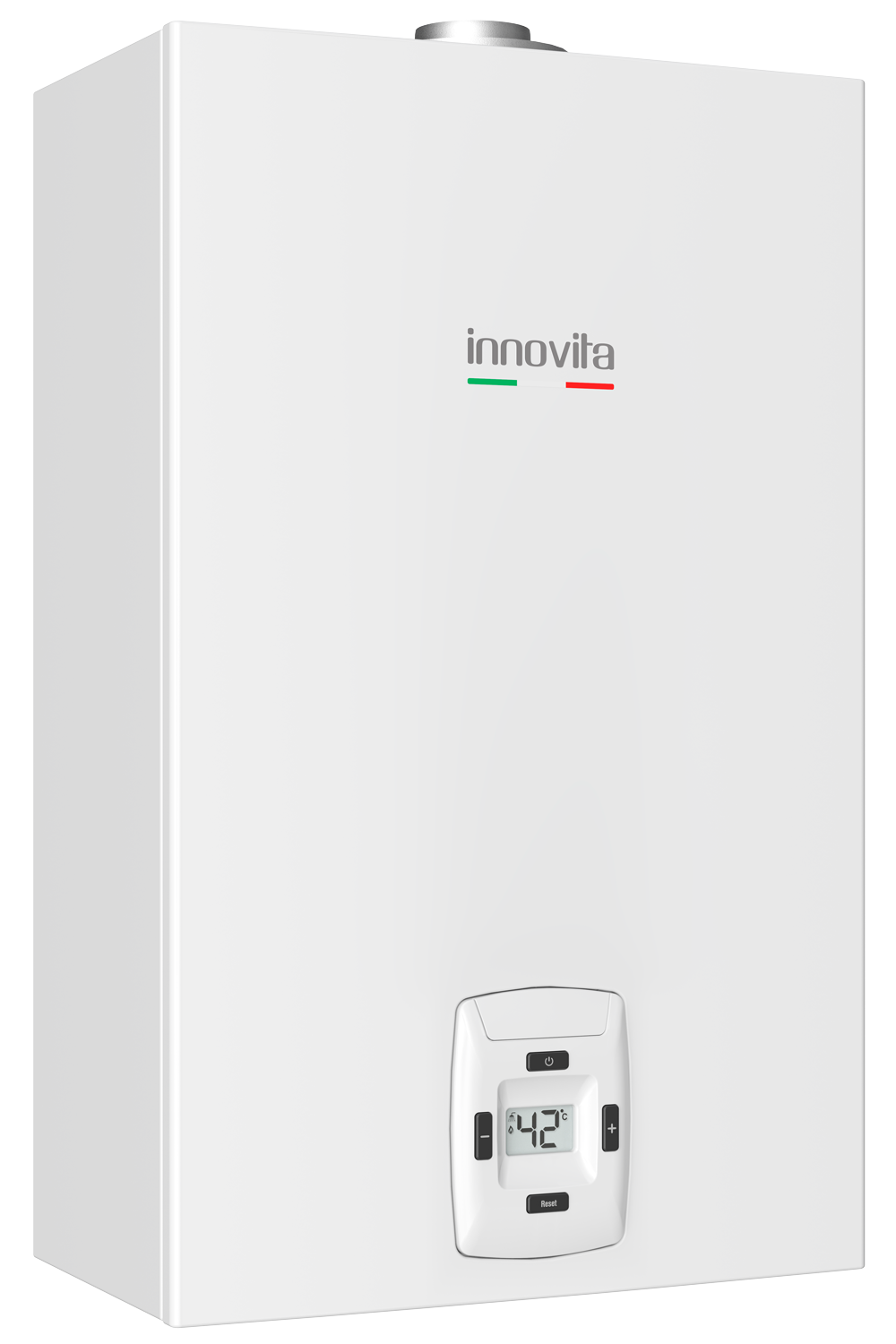

Innovita Water heaters Amalfi Eco 14 RS i HM IN

Amalfi Eco 14 RS i HM IN

Sealed chamber instant gas water heater

Leading-edge technology

The high modulation ratio of Amalfi Eco 14 RS i HM IN ensures exceptional performance in both temperature stability and consumption optimization. Excellent versatility is achieved thanks to the standard NTC probe connection for integration with solar thermal systems

Features Range Documents General informations Related products

Features

  • Low NOx emissions
  • High efficiency
  • Lowest starting pressure/flow rate
  • Compact dimensions
  • Electronic flame modulation
  • Easy maintenance thanks to front accessibility of every component
  • Automatic Combustion Control system for control of correct combustion
  • High sanitary comfort with hot water temperature stability
  • Quick response to user requests thanks to the flow meter fitted as standard
  • IPX5D degree of protection
  • Water over-temperature control device
  • NTC temperature control probe
  • Ignition and flame ionisation control with single electrode
  • High modulation ratio up to 1:6
  • Low consumption with low water withdrawal
  • Standard prearrangement for connection to solar systems

Product line Amalfi Eco

Amalfi Eco 14 RS i HM IN Amalfi Eco 11 RS i Amalfi Eco 14 RS i HM Amalfi Eco 17 RS i HM
Code Metano 30006809
GPL 30006810
 Metano
GPL 30006798
 Metano 30006799
GPL 30006800
 Metano 30006801
GPL 30006802
Applicazione Interno Interno Interno Interno
Produzione ACS ΔT25° 14 l/min 11 l/m 14 l/min 17 l/min
Profilo di carico e Classe di efficienza energetica L - A M - A L - A XL - A
Rapporto di modulazione 1:6 1:3 1:6 1:6
Portata idrica di avviamento 2,0 l/min 2,0 l/min 2,0 l/min 2,0 l/min
Dimensioni e peso 619x385x230 mm - 15 kg 619x304x230 mm - 14 kg 619x385x230 mm - 15 kg 619x385x230 mm - 17 kg

Documents

Amalfi Eco 14 RS i HM IN

Metano 30006809 GPL 30006810

High Modulation (HM)

Innovita High Modulation (HM) is the ideal solution for those seeking a product capable of ensuring the stability of the temperature of the hot water delivered in all conditions. The excellence of performance is further highlighted in very demanding conditions for a gas instantaneous water heater, such as low flow rates (see graph), where HM technology ensures excellent results in terms of temperature control and management of the water.
