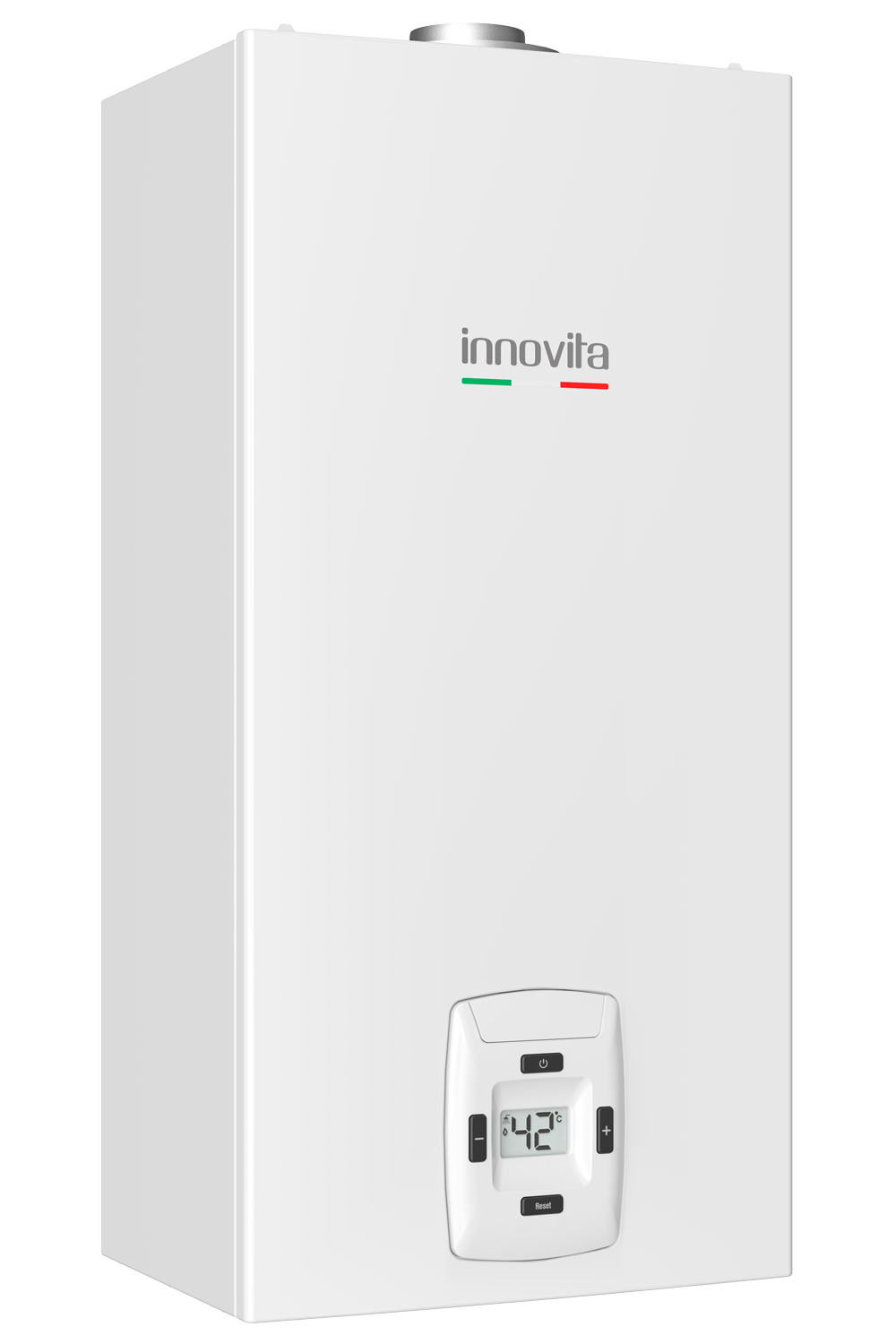

Amalfi Eco 11 RS i

Sealed chamber instant gas water heater

For all installation requirements

Designed to achieve a top-of-the-line load profile, the Amalfi Eco 11 RS i is capable of operating even with very low water flow rates. It features an Automatic Combustion Control system for proper combustion control and provides consistent temperature stability when hot water is drawn. Equipped with a 'Comfort Sanitary' flowmeter that ensures a rapid response to user demands

Features Range Documents Related products

Features

Low NOx emissions
High efficiency
Lowest starting pressure/flow rate
Compact dimensions
Electronic flame modulation
Easy maintenance thanks to front accessibility of every component
Automatic Combustion Control system for control of correct combustion
High sanitary comfort with hot water temperature stability
Quick response to user requests thanks to the flow meter fitted as standard
IPX5D degree of protection
Water over-temperature control device
NTC temperature control probe
Flame ionisation ignition and control with single electrode
Low consumption with low water withdrawal

Product line Amalfi Eco

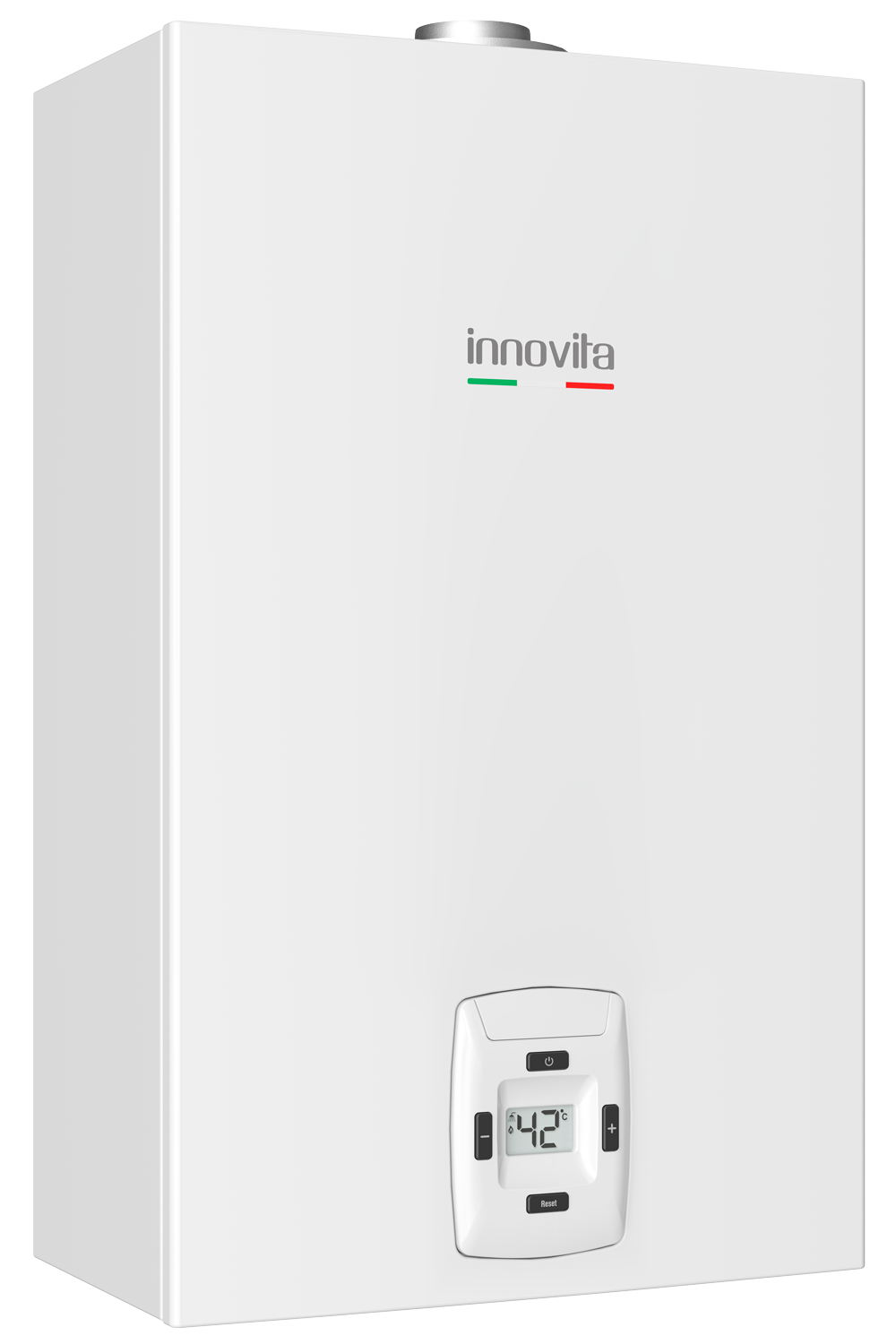

	Amalfi Eco 11 RS i	Amalfi Eco 14 RS i HM	Amalfi Eco 14 RS i HM IN	Amalfi Eco 17 RS i HM
Code	Metano GPL 30006798	Metano 30006799 GPL 30006800	Metano 30006809 GPL 30006810	Metano 30006801 GPL 30006802
Applicazione	Interno	Interno	Interno	Interno
Produzione ACS ΔT25°	11 l/m	14 l/min	14 l/min	17 l/min
Profilo di carico e Classe di efficienza energetica	M - A	L - A	L - A	XL - A
Rapporto di modulazione	1:3	1:6	1:6	1:6
Portata idrica di avviamento	2,0 l/min	2,0 l/min	2,0 l/min	2,0 l/min
Dimensioni e peso	619x304x230 mm - 14 kg	619x385x230 mm - 15 kg	619x385x230 mm - 15 kg	619x385x230 mm - 17 kg
