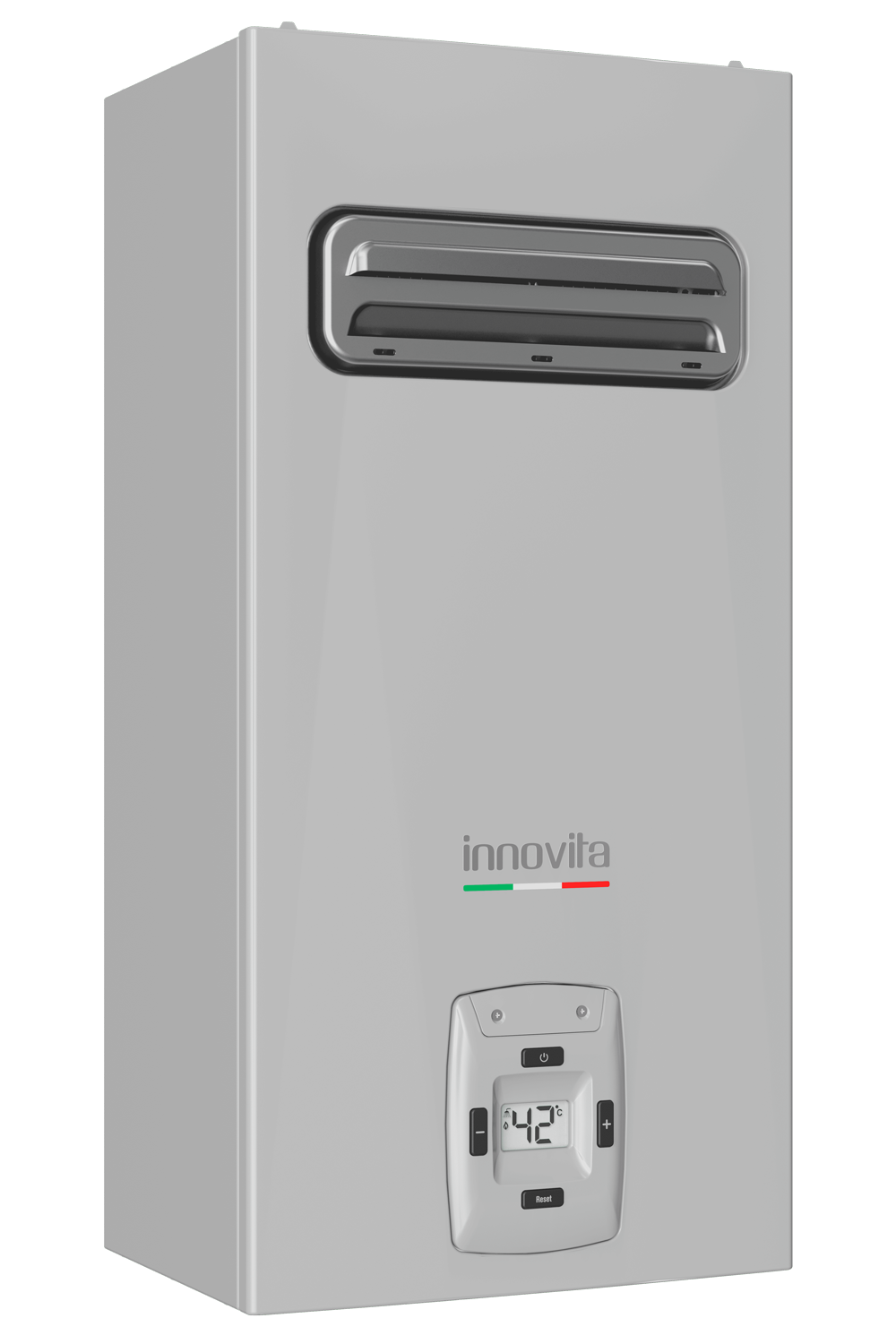

Bellagio Eco 11 RS i

Sealed chamber instant gas water heater for outdoor use

Versatile installation

Available in natural gas (Methane) and LPG (Liquid Petroleum Gas) versions, Bellagio Eco 11 RS i is designed for outdoor applications: classified as type A2, it does not require flue/exhaust systems. It comes standard with 7 anti-freeze heaters that protect it in external temperatures as low as -15°C. The coating with specific paint ensures the product has high resistance to UV rays and atmospheric agents

Features Range Documents Related products

Features

Low NOx emissions
Automatic Combustion Control system for controlling correct combustion
Quick response to user requirements thanks to standard flow meter
High efficiency
Lowest starting pressure/flow rate
Compact dimensions
Electronic flame modulation
Easy maintenance
Hot water temperature stability
IPX5D degree of protection
Water over-temperature control device
NTC temperature control probe
Flame ionisation ignition and control with single electrode
Low consumption with low water withdrawal
Antifreeze protection down to -15°

Product line Bellagio Eco

	Bellagio Eco 11 RS i	Bellagio Eco 14 RS i HM	Bellagio Eco 17 RS i HM
Code	Metano 30006803 GPL 30006804	Metano 30006805 GPL 30006806	Metano 30006807 GPL 30006808
Applicazione	Esterno	Esterno	Esterno
Produzione ACS ΔT25°	11 l/min	14 l/min	17 l/min
Profilo di carico e Classe di efficienza energetica	M - A	L - A	XL - A
Rapporto di modulazione	1:3	1:6	1:6
Portata idrica di avviamento	2,0 l/min	2,0 l/min	2,0 l/min
Dimensioni e peso	619x304x237 mm - 14 kg	619x385x237 mm - 16 kg	619x385x237 mm - 17 kg
