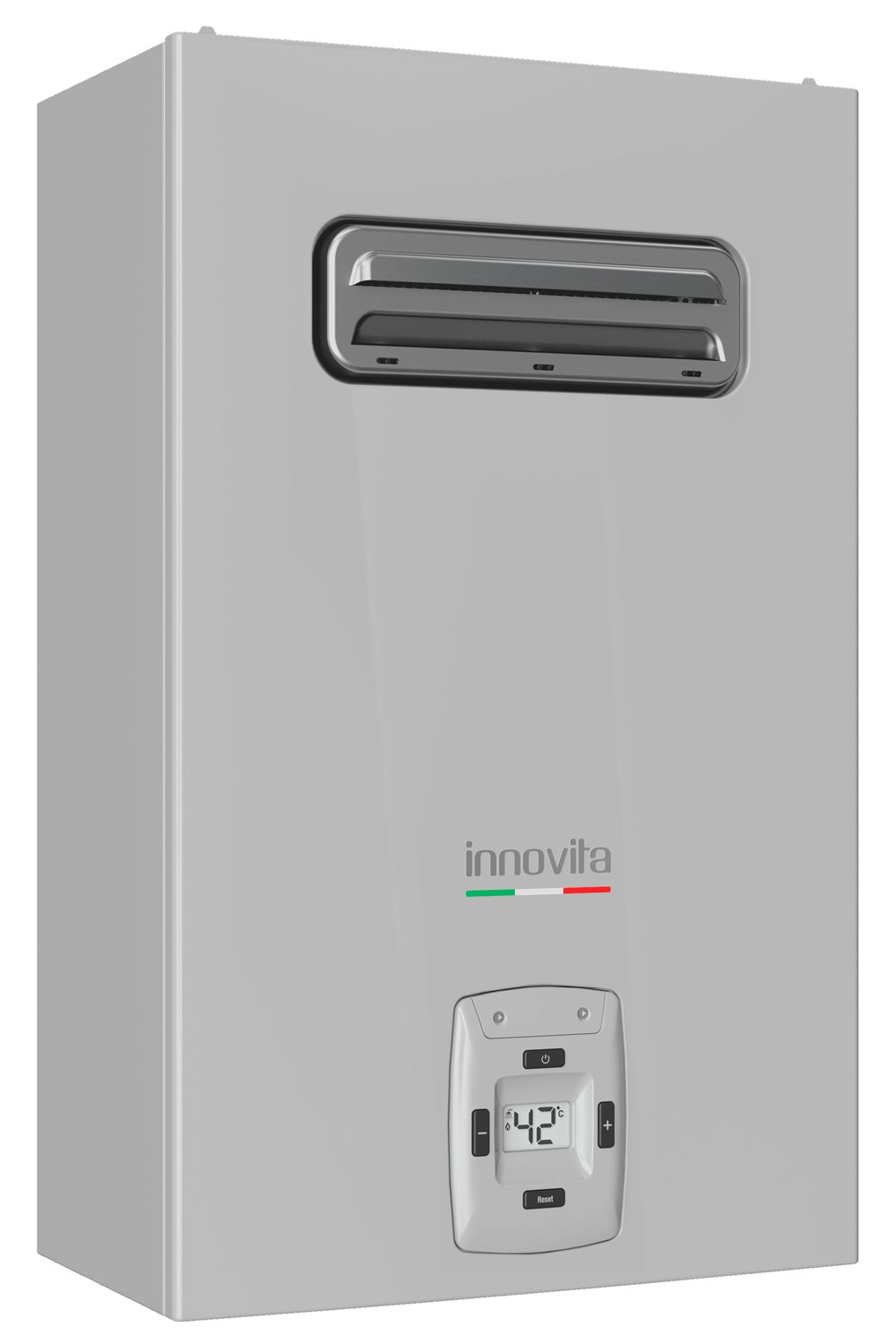

Innovita Water heaters Bellagio Eco 14 RS i HM

Bellagio Eco 14 RS i HM

Instantaneous outdoor gas water heater with sealed combustion chamber and high modulation

High sanitary comfort

Available in both natural gas and LPG versions, Bellagio Eco 14 RS i HM is designed for outdoor applications: classified as type A2, it does not require flue exhaust systems. It comes standard with 7 anti-freeze resistors that protect it up to external temperatures of -15°C. High Modulation (HM) is the ideal solution for those looking for a product capable of ensuring stable hot water temperature output in all conditions.

Features Range Documents General informations Related products

Features


Low Nitrogen Oxides (NOx) emissions
High efficiency
Minimum start-up pressure/flow rate
Quick response to user requests thanks to the standard flowmeter
Automatic Combustion Control System for proper combustion control
Compact dimensions
Electronic flame modulation
Ease of maintenance
Stability of hot water temperature
IPX5D protection rating
Water overtemperature control device
Temperature control
NTC probe
Ionization flame ignition and control with single electrode
Reduced consumption with low water withdrawals
High modulation ratio up to 1:6
Antifreeze protection up to -15°C
Standard preparation for connection to solar systems

Product line Bellagio Eco

Bellagio Eco 14 RS i HM Bellagio Eco 11 RS i Bellagio Eco 17 RS i HM
Code Metano 30006805
GPL 30006806
 Metano 30006803
GPL 30006804
 Metano 30006807
GPL 30006808
Applicazione Esterno Esterno Esterno
Produzione ACS ΔT25° 14 l/min 11 l/min 17 l/min
Profilo di carico e Classe di efficienza energetica L - A M - A XL - A
Rapporto di modulazione 1:6 1:3 1:6
Portata idrica di avviamento 2,0 l/min 2,0 l/min 2,0 l/min
Dimensioni e peso 619x385x237 mm - 16 kg 619x304x237 mm - 14 kg 619x385x237 mm - 17 kg

Documents

Bellagio Eco 14 RS i HM

Metano 30006805 GPL 30006806

High Modulation (HM)

Innovita High Modulation (HM) is the ideal solution for those seeking a product capable of ensuring the stability of the temperature of the hot water delivered in all conditions. The excellence of performance is further highlighted in very demanding conditions for a gas instantaneous water heater, such as low flow rates (see graph), where HM technology ensures excellent results in terms of temperature control and management of the water.
