Innovita Water heaters Amalfi Eco 14 RS i HM

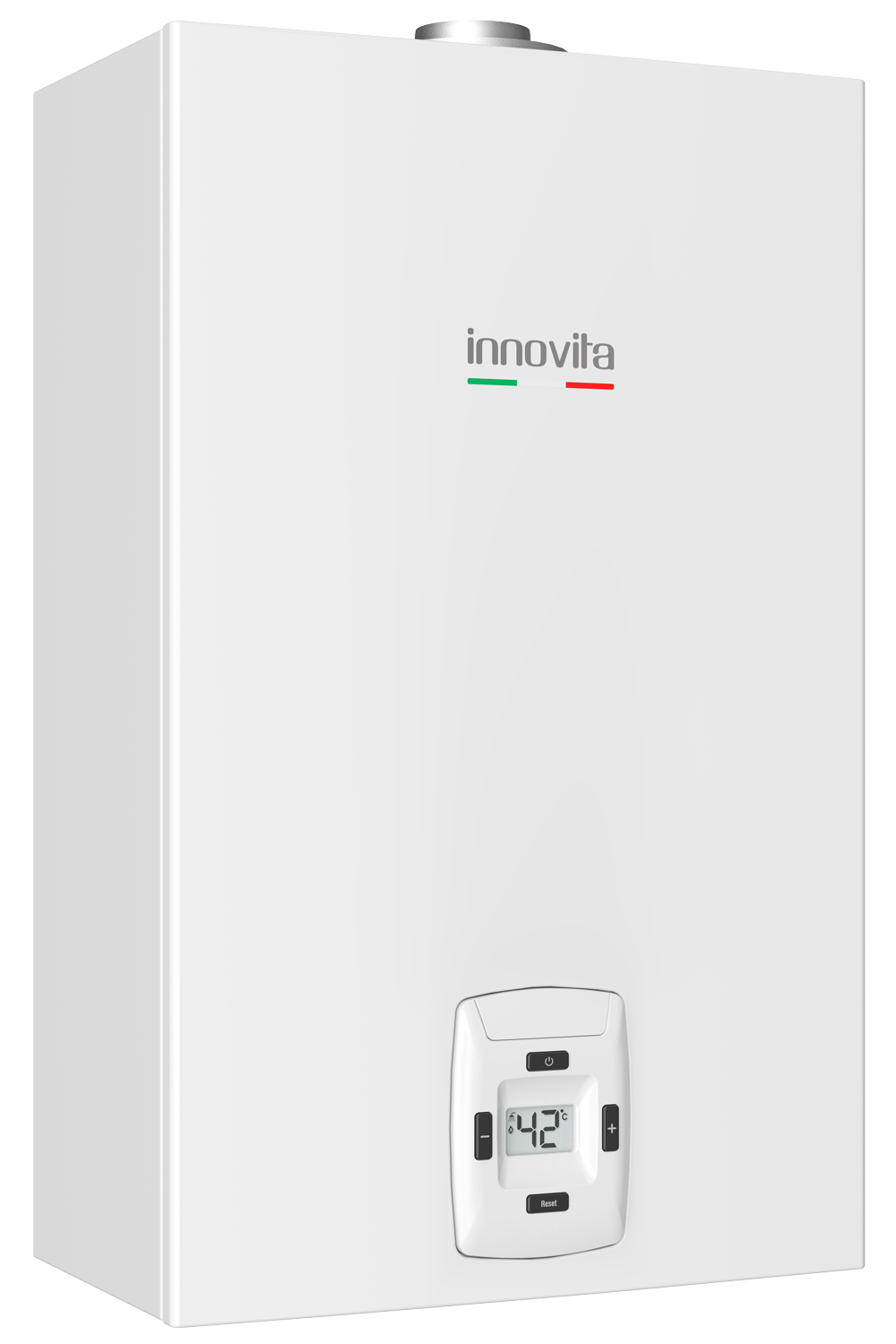

Amalfi Eco 14 RS i HM

Sealed chamber instant gas water heater

High modulation and freeze protection

Available in both natural gas (Methane) and LPG (Liquid Petroleum Gas) versions, the Amalfi Eco 14 RS i HM offers high performance that reaches excellence levels thanks to its High Modulation (HM). It is equipped with 7 anti-freeze heaters that protect it even in external temperatures as low as -15°C. Excellent versatility is achieved with the standard NTC probe for connection to solar thermal systems

Features Range Documents General informations Related products

Features

  • Low NOx emissions
  • High efficiency
  • Lowest starting pressure/flow rate
  • Compact dimensions
  • Electronic flame modulation
  • Easy maintenance thanks to front accessibility of every component
  • Automatic Combustion Control system for control of correct combustion
  • High sanitary comfort with hot water temperature stability
  • Quick response to user requests thanks to the flow meter fitted as standard
  • IPX5D degree of protection
  • Water over-temperature control device
  • NTC temperature control probe
  • Ignition and flame ionisation control with single electrode
  • High modulation ratio up to 1:6
  • Low consumption with low water withdrawal
  • Frost protection down to -15°
  • Standard prearrangement for connection to solar systems

Product line Amalfi Eco

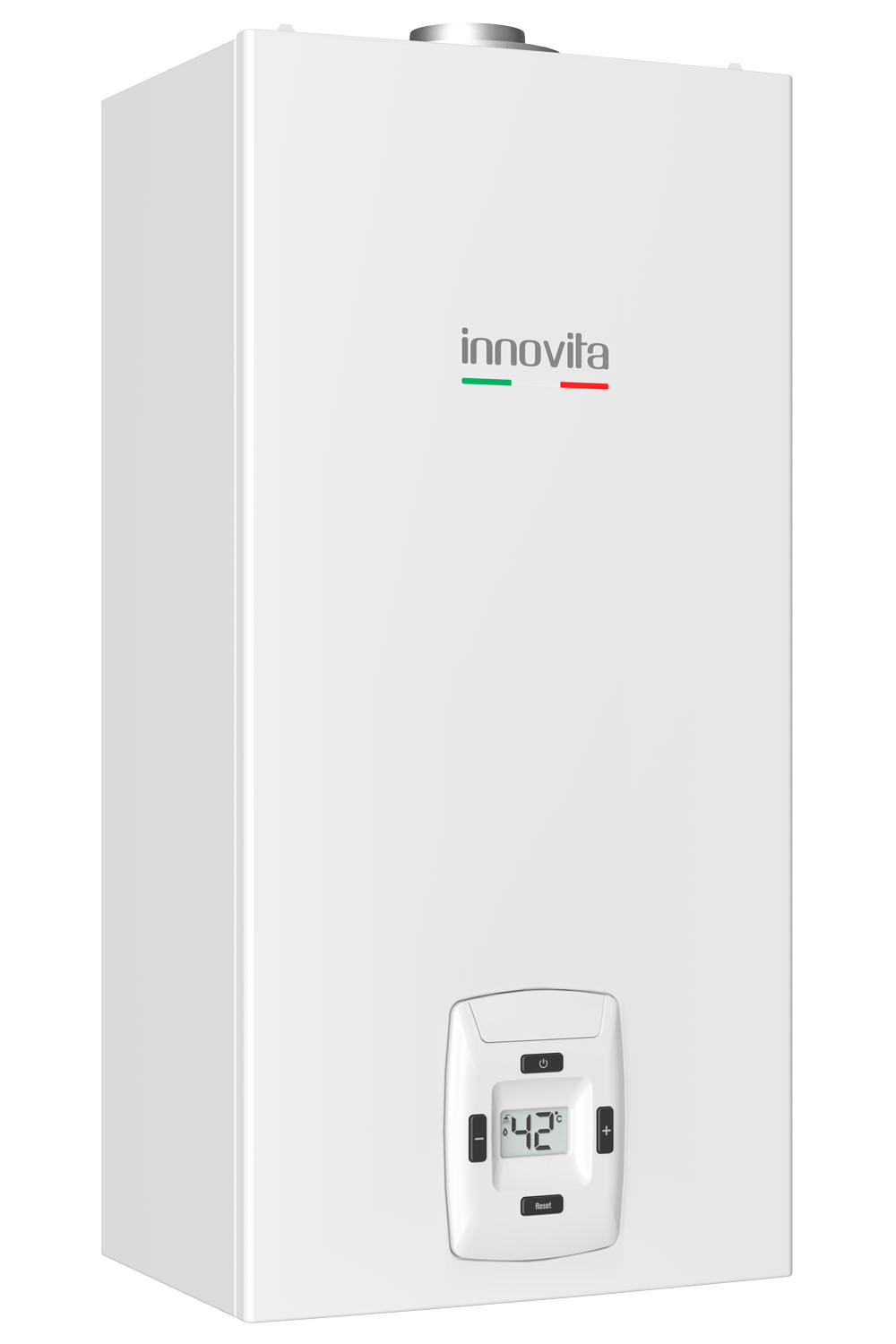

Amalfi Eco 14 RS i HM Amalfi Eco 11 RS i Amalfi Eco 14 RS i HM IN Amalfi Eco 17 RS i HM
Code Metano 30006799
GPL 30006800
 Metano
GPL 30006798
 Metano 30006809
GPL 30006810
 Metano 30006801
GPL 30006802
Applicazione Interno Interno Interno Interno
Produzione ACS ΔT25° 14 l/min 11 l/m 14 l/min 17 l/min
Profilo di carico e Classe di efficienza energetica L - A M - A L - A XL - A
Rapporto di modulazione 1:6 1:3 1:6 1:6
Portata idrica di avviamento 2,0 l/min 2,0 l/min 2,0 l/min 2,0 l/min
Dimensioni e peso 619x385x230 mm - 15 kg 619x304x230 mm - 14 kg 619x385x230 mm - 15 kg 619x385x230 mm - 17 kg

Documents

Amalfi Eco 14 RS i HM

Metano 30006799 GPL 30006800

High Modulation (HM)

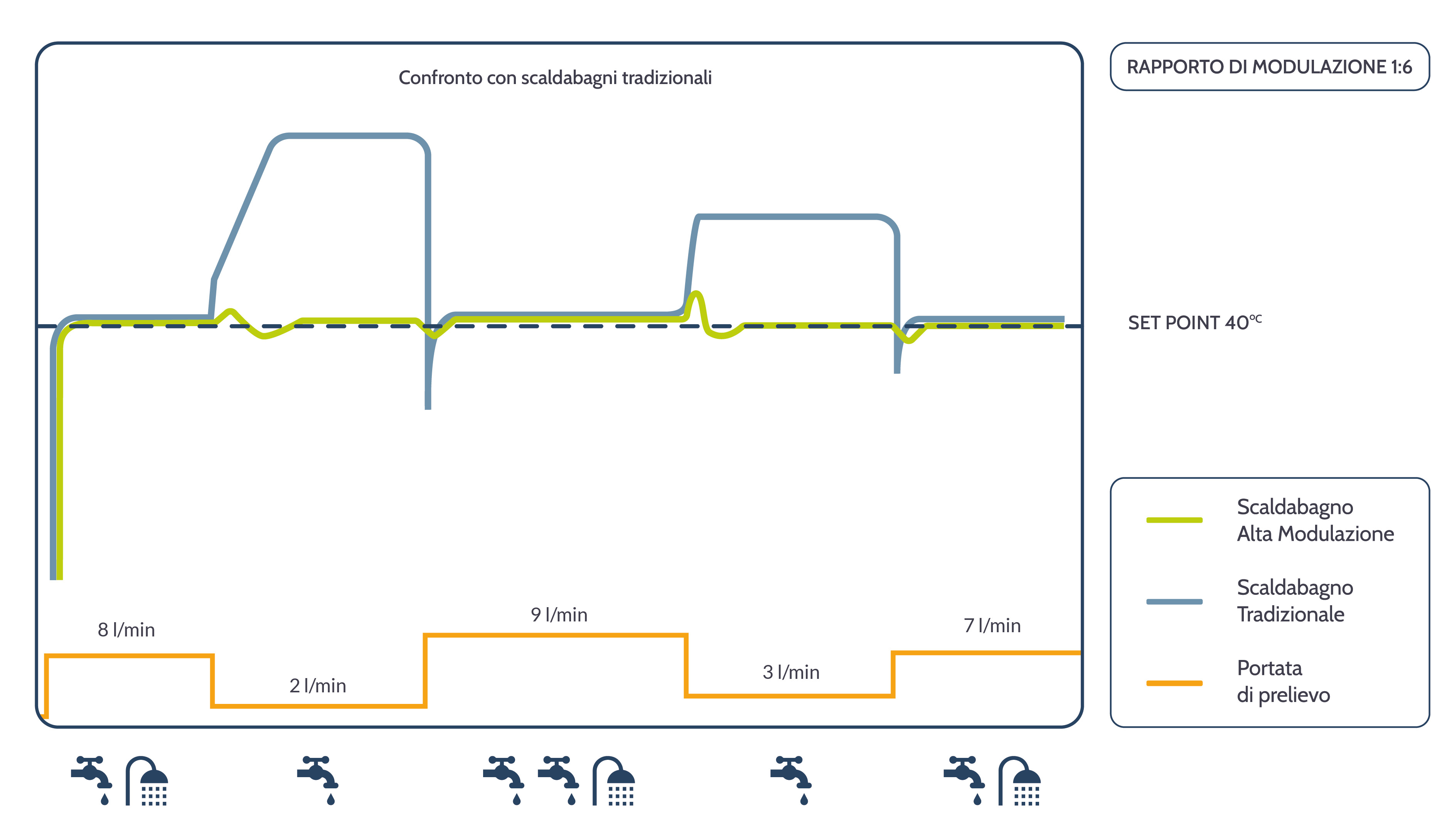

Innovita High Modulation (HM) is the ideal solution for those seeking a product capable of ensuring the stability of the temperature of the hot water delivered in all conditions. The excellence of performance is further highlighted in very demanding conditions for a gas instantaneous water heater, such as low flow rates (see graph), where HM technology ensures excellent results in terms of temperature control and management of the water.
