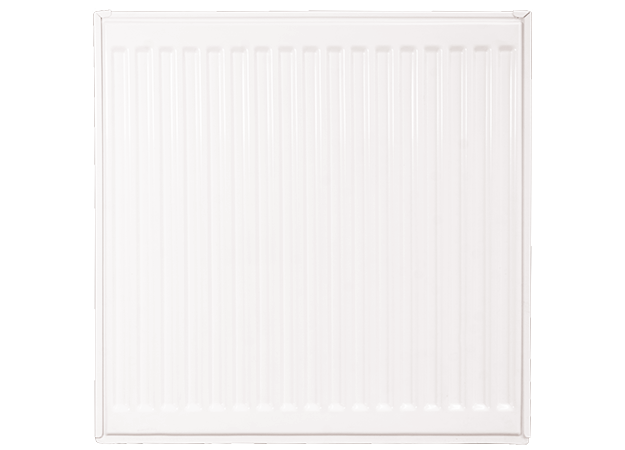

Type 22 600

Steel panel radiators

Steel panel radiator with high thermal conductivity

Introducing our Steel Panel Radiator: Engineered for Optimal Performance. Our steel panel radiator is designed to revolutionize heating efficiency, boasting an array of features tailored to provide superior warmth and durability.

Features Range Documents

Features

Steel panel radiator with high thermal conductivity
Double U-Shape cold-formed fins for the best convective heating of the room
High resistance to water hammer to reduce the radiator deformation
Good operational pressure: no breakage at 11 bar
Installation in a multi-story building (height up to 60 mt tall)
Available models with heights 610 mm and 510 mm (axes 550 mm and 450 mm)

Product line Type 22

Codice	Weight (kg)	Dimension (mm)	Output (W) ΔT 50	Qty. per pallet
Type 22 600/600 30001737	17,88	1970 x 1220 x 630	913,86	32
Type 22 600/800 30001738	23,84	1970 x 1220 x 810	1218,49	32
Type 22 600/1000 30001739	5,89	1740 x 1260 x 1010	1309,49	28
Type 22 600/1200 30001740	35,76	1970 x 1210 x 630	1827,73	16
Type 22 600/1400 30001741	34,16	1970 x 1410 x 630	1833,29	16
Type 22 600/1600 30001742	47,68	1740 x 1610 x 630	2436,97	14
Type 22 600/1800 30001743	53,64	1740 x 1810 x 630	2741,59	14
Type 22 600/2000 30001744	59,60	1740 x 2010 x 630	3046,21	14
Type 22 600/1300 30005735	31,72	1970 x 1310 x 630	1980,04	16
Type 22 600/1500 30005679	44,70	1970 x 1510 x 630	2284,66	16
