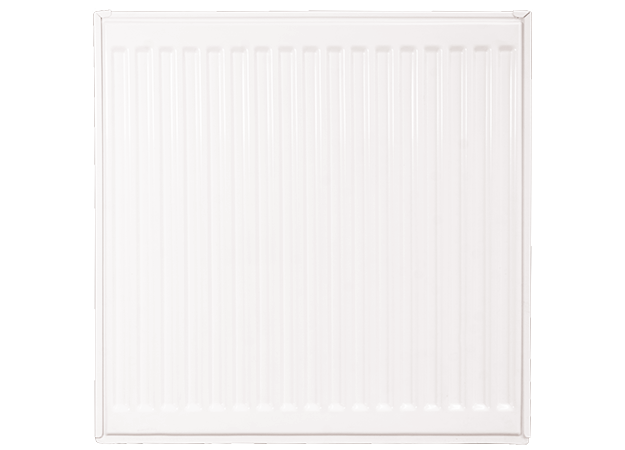

Innovita Radiators Type 22 500

Type 22 500

Steel panel radiators

Steel panel radiator with high thermal conductivity

Introducing our Steel Panel Radiator: Engineered for Optimal Performance. Our steel panel radiator is designed to revolutionize heating efficiency, boasting an array of features tailored to provide superior warmth and durability.

Features Range Documents

Features

  • Steel panel radiator with high thermal conductivity
  • Double U-Shape cold-formed fins for the best convective heating of the room
  • High resistance to water hammer to reduce the radiator deformation
  • Good operational pressure: no breakage at 11 bar
  • Installation in a multi-story building (height up to 60 mt tall)
  • Available models with heights 610 mm and 510 mm (axes 550 mm and 450 mm)

Product line Type 22

Codice Axes (mm) Elements (no.) Weight (kg) Dimension (mm) Output (W) ΔT 50 Qty. per pallet
Type 22 500/600 30001745 14,64 1740 x 1140 x 1140 785,69 56
Type 22 500/800 30001746 19,52 1970 x 1050 x 810 1047,59 32
Type 22 500/1000 30001747 24,60 1970 x 1050 x 1010 1309,49 32
Type 22 500/1200 30001748 29,28 1740 x 1210 x 1050 1571,39 28
Type 22 500/1400 30001749 34,16 1970 x 1410 x 530 1833,29 16
Type 22 500/1600 30001750 39,04 1740 x 1610 x 530 2095,18 14
Type 22 500/1800 30001751 43,92 1740 x 1810 x 530 2357,08 14
Type 22 500/2000 30001752 48,80 1740 x 2010 x 530 2618,98 14
Type 22 500/1300 30005734 31,72 1970 x 1310 x 530 1702,34 16
Type 22 500/1500 30005678 36,60 1740 x 1510 x 530 1964,24 14

Documents

Type 22 500

Type 22 500/600 Type 22 500/800 Type 22 500/1000 Type 22 500/1200 Type 22 500/1400 Type 22 500/1600 Type 22 500/1800 Type 22 500/2000 Type 22 500/1300 Type 22 500/1500
