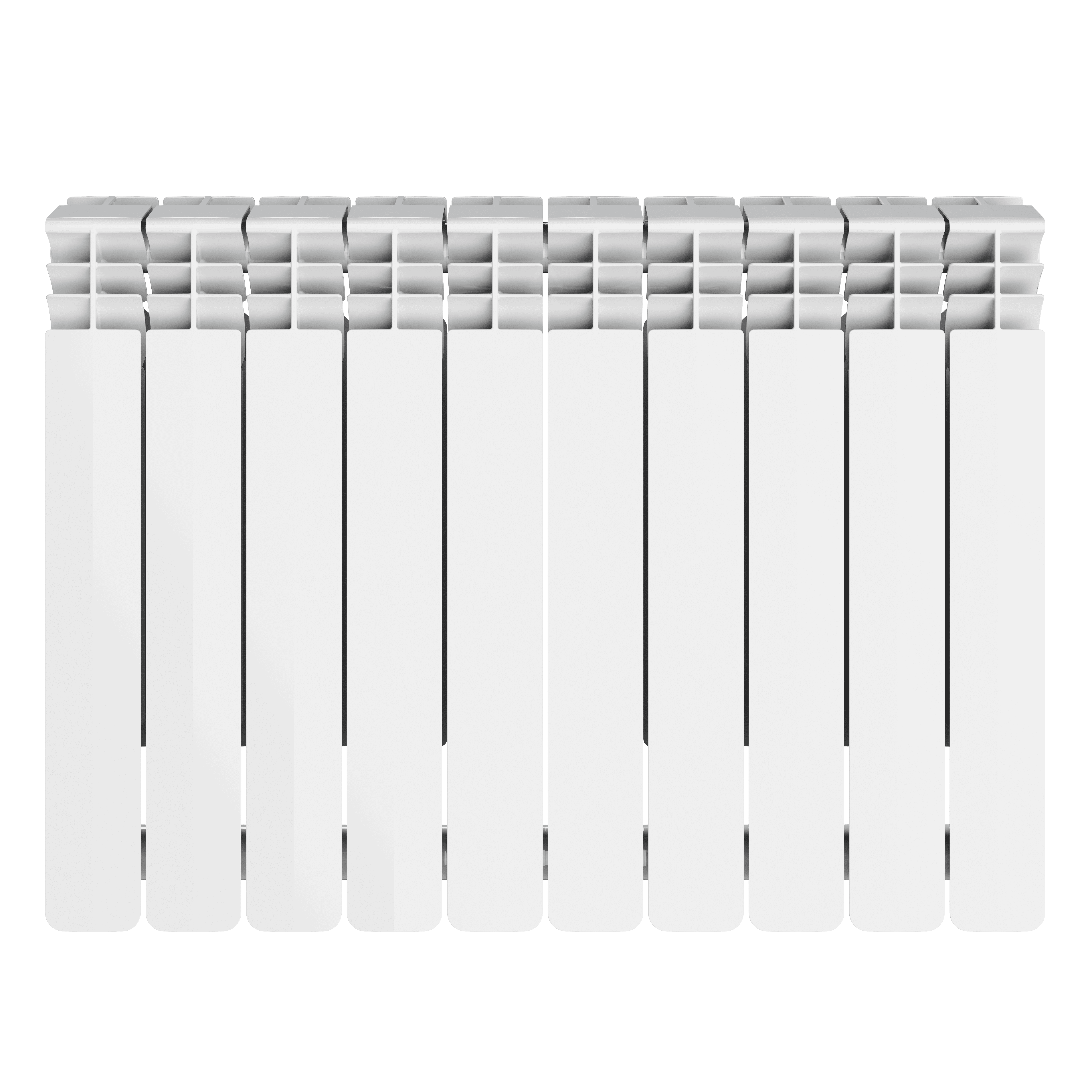

Regina 600

Die-cast aluminum radiators

High reliability and long life

Aluminum is a circular material which is 100% recyclable helping the environment. Thanks to the high thermal conductivity, it heats the room very fast and uniformly. This increase your energy saving.

Features Range Documents Related products

Features

High thermal efficiency both at high and low water temperature
The best for traditional high temperature radiator systems and new low temperature radiator systems (with heat pumps)
Estremely low thermal inertia – fast warm up
Perfect for the new installations and for the renovation
High corrosion resistance
High perception surface painting RAL 9016, long lasting and nice design impact
Double layer process to protect from corrosion, epossidic powder painting process
Sizes available with axis 350-500-600 mm
Finish good codes available with 3-4-5-8-10-12 elements
Easy to customize the radiator elements composition with accessory tool
The radiator fit any room specification of thermal load and design appearance

Product line Regina

Codice	Axes (mm)	Elements (no.)	Weight (kg)	Dimension (mm)	Output (W) ΔT 50	Qty. per pallet
Regina 600/3 30001778	600	3	5,40	240 x 680 x 95	450	44
Regina 600/4 30006564	600	4	7,20	320 x 680 x 95	600	44
Regina 600/5 30001779	600	5	9,0	400 x 680 x 95	750	22
Regina 600/8 30001782	600	8	14,40	640 x 680 x 95	1200	22
Regina 600/10 30001359	600	10	18,0	800 x 680 x 95	1500	22
Regina 600/12 30001785	600	12	21,60	960 x 680 x 95	1800	11
