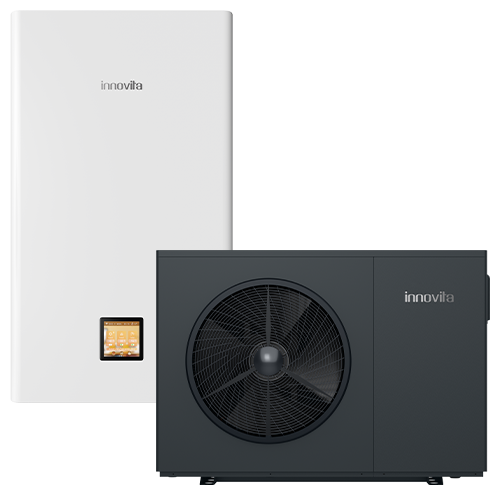

Innovita Heat Pumps Medale R32 13M Outdoor Unit

Medale R32 13M Outdoor Unit

Single-phase 13 kW split heat pump

Efficient comfort

R32 GAS: Natural refrigerant with a low Global Warming Potential and virtually no Nitrogen Oxide (NOx) emissions.

INCLUDED: 1” 1/4 Y-strainer filter, anti-vibration feet, 4 NTC probes for the system, integrated Wi-Fi 4” touch display.

SMART GRID READY: With additional inputs from the photovoltaic system, this function allows for the accumulation of hot water during photovoltaic production and release it during periods of high thermal demand.

Features Range Documents General informations

Features

R32 refrigerant gas
Maximum delivery temperature of 60°C
Operation up to -25°C external temperatures
Integrated 3-way valve for sanitary boiler in the indoor unit
Integrated Wi-Fi with user-side management app and IoT platform for assistance
Integrated electric backup resistance in the indoor unit (3 kW for 9M and 13M, 9 kW for 18T) Complete system management with a single control
Possibility of cascade installation up to 8 units

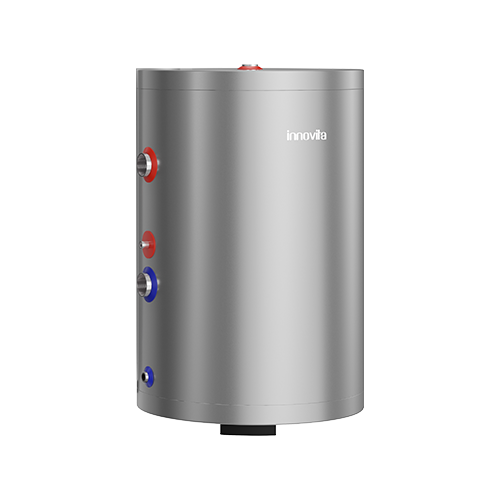

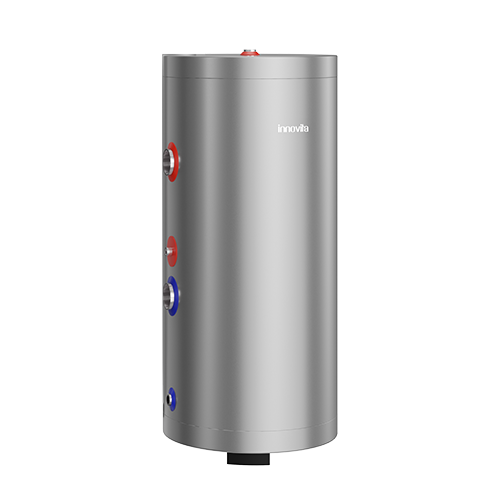

Ideal when combined with Akuakombi combined boiler
Compact dimensions of the outdoor unit

Product line Grigna R290

Medale R32 13M Outdoor Unit Medale R32 18M Outdoor Unit Medale R32 9M Outdoor Unit
Code OUT: 80000316
IN: 80000431
 OUT: 80000317
IN: 80000319
 OUT: 80000315
IN: 80000318
Alimentazione elettrica 230 V - 50 Hz 400 V - 50 Hz 230 V - 50 Hz
Potenza riscaldamento nom. 12,60 kW 17,78 kW 9,02 kW
Potenza raffreddamento nom. 11,17 kW 15,74 kW 7,68 kW
COP 4,51 4,42 4,61
EER 3,30 3,13 3,57
Portata nominale acqua 2,24 m3/h 3,18 m3/h 1,55 m3/h
Pressione sonora a 1m 43~55 dB(A) 43~59 dB(A) 43~55 dB(A)
Dimensioni e peso (Unità Esterna) 977 x 928 x 400 mm - 90 kg 1000 x 1.360 x 390 mm - 122 kg 977 x 928 x 400 mm - 90 kg
Livello ErP (35°C) A+++ A+++ A+++
Livello ErP (55°C) A++ A++ A++

Documents

Medale R32 13M Outdoor Unit

OUT: 80000316 IN: 80000431

Pannello di controllo touch con Wi-Fi integrato



Il pannello di controllo touch a colori fornito a corredo presenta un LCD da 4 pollici che garantisce facilità d’uso e una chiara visualizzazione delle informazioni. È dotato di connettività Wi-Fi per il controllo remoto tramite smartphone e si collega alla PdC senza bisogno di un’alimentazione separata.

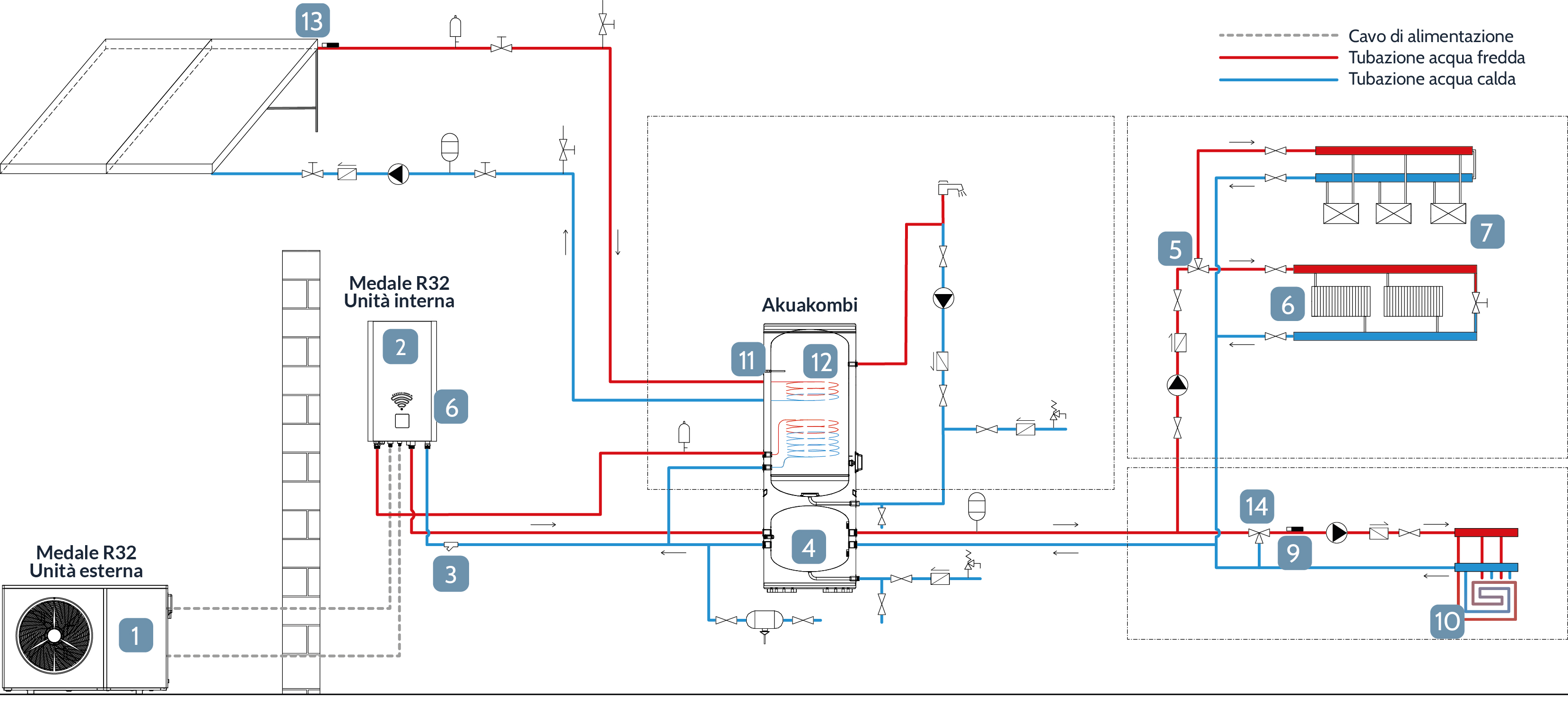

Unico controllo della pompa di calore



1. Pompa di calore Medale R32 (Unità esterna); 2. Pompa di calore Medale R32 (Unità interna); 3. Filtro a Y (di serie); 4. Serbatoio inerziale (parte del prodotto Akuakombi); 5. Elettrovalvola a 3-vie (disponibile come accessorio); 6. Resistenza elettrica back up integrata (di serie); 7. Fancoil; 8. Radiatori; 9. Sonda temp. riscaldamento a pavimento (di serie); 10. Circuito di riscaldamento a pavimento; 11. Sonda temp. serbatoio acqua calda (di serie); 12. Bollitore sanitario/accumulo inerziale Akuakombi; 13. Sonda temp. solare (di serie); 14. Elettrovalvola miscelatrice riscaldamento a pavimento

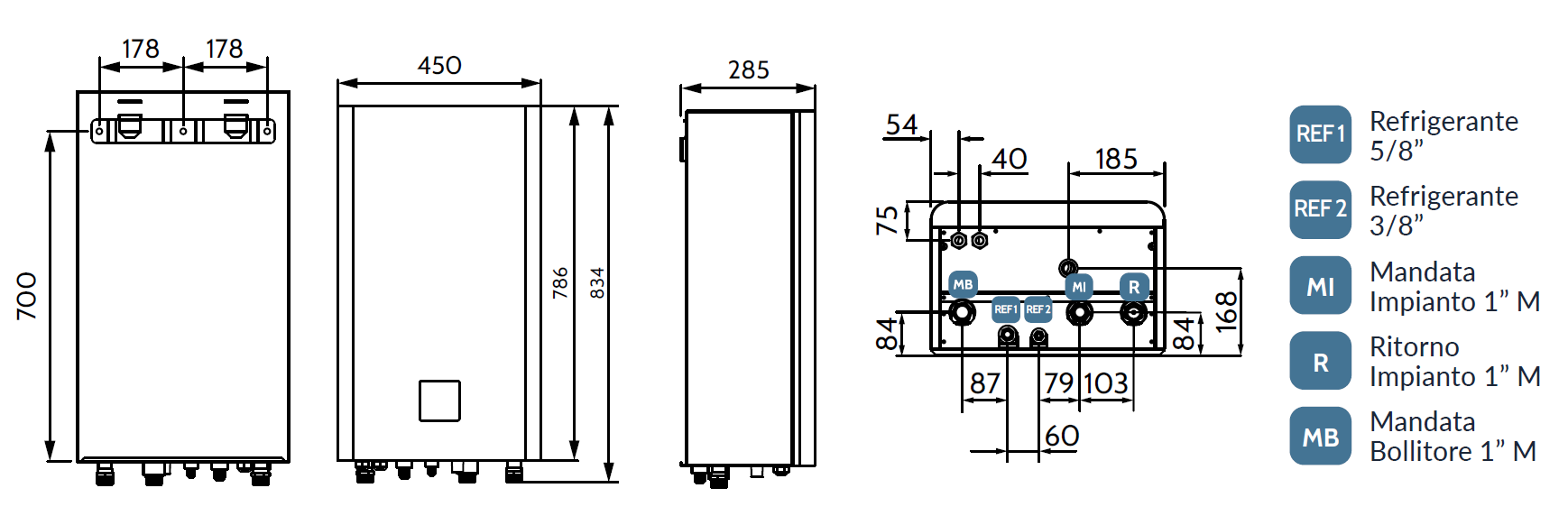

Unità Interna Medale
