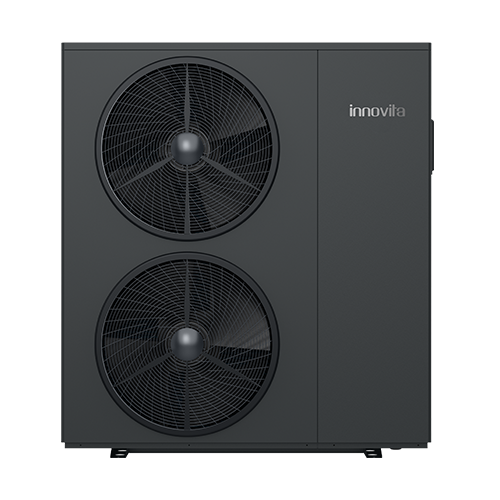

Innovita Heat Pumps Grigna R290 16T

Grigna R290 16T

Three-phase 16 kW monobloc heat pump

Efficient comfort

R290 GAS: Natural refrigerant with a low Global Warming Potential (GWP = 3) and virtually no Nitrogen Oxide (NOx) emissions.

1” 1/4: The hydraulic connections of the heat pump, accumulators, water filter, and Innovita 3-way valve are all 1” 1/4 to ensure high flow rates and consequently optimize the performance of the heat pump system.

INCLUDED: 1” 1/4 Y-strainer filter, anti-vibration feet, 4 NTC probes for the system, integrated Wi-Fi 4” touch display.

Features Range Documents General informations

Features

R290 refrigerant gas
Maximum delivery temperature of 75°C
Operation up to -25°C external temperatures
Performance certified by third-party HP Keymark entity
Complete system management with a single control
Included 4’’ color LCD touch display
Extremely quietness and very high efficiency Integrated Wi-Fi with user-side management app and IoT platform for assistance
Possibility of cascade installation up to 8 units (160 kW)
Ideal when combined with Akuakombi combined boiler and Innovita 3-way valve

Product line Grigna R290

Grigna R290 16T Grigna R290 13M Grigna R290 13T Grigna R290 18T Grigna R290 20T Grigna R290 6M Grigna R290 9M Grigna R290 9T
Code 80000312
 80000309
 80000311
 80000313
 80000314
 80000307
 80000308
 80000310
Alimentazione elettrica 380 V - 50 Hz 230 V - 50 Hz 380 V - 50 Hz 380 V - 50 Hz 380 V - 50 Hz 230 V - 50 Hz 230 V - 50 Hz 230 V - 50 Hz
Potenza riscaldamento nom. 16,00 kW 12,74 kW 12,74 kW 18,00 kW 20,36 kW 6,00 kW 8,81 kW 8,81 kW
Potenza raffreddamento nom. 13,47 kW 10,36 kW 10,36 kW 14,27 kW 15,43 kW 5,22 kW 6,92 kW 6,92 kW
COP 4,58 4,52 4,52 4,59 4,41 4,58 4,66 4,66
EER 3,90 3,69 3,69 3,84 3,75 3,76 3,72 3,72
Portata nominale acqua 2,75 m3/h 1,5 m3/h 2,19 m3/h 3,10 m3/h 3,44 m3/h 1,03 m3/h 1,5 m3/h 2,19 m3/h
Pressione sonora a 1m 44~54 dB(A) 43~49 dB(A) 43~55 dB(A) 44~56 dB(A) 44~54 dB(A) 43~48 dB(A) 43~49 dB(A) 43~55 dB(A)
Dimensioni e peso (Unità Esterna) 1263x1375x440mm - 180kg 1263x875x440mm - 119kg 1263x875x440mm - 133kg 1263x1375x440mm - 180kg 1263x1375x440mm - 180kg 1180x710x440 mm - 84 kg 1263x875x440mm - 115kg 1263x875x440mm - 129kg
Livello ErP (35°C) A+++ A+++ A+++ A+++ A+++ A+++ A+++ A+++
Livello ErP (55°C) A++ A++ A++ A++ A++ A++ A++ A++

Documents

Grigna R290 16T

80000312

Pannello di controllo touch con Wi-Fi integrato



Il pannello di controllo touch a colori fornito a corredo presenta un LCD da 4 pollici che garantisce facilità d’uso e una chiara visualizzazione delle informazioni. È dotato di connettività Wi-Fi per il controllo remoto tramite smartphone e si collega alla PdC senza bisogno di un’alimentazione separata.

Unico controllo della pompa di calore




1. Pompa di calore Grigna R290; 2. Comando remoto LCD a colori (di serie); 3. Filtro a Y (di serie); 4. Sonda temp. uscita del sistema (di serie); 5. Fonte di calore ausiliaria, caldaia o resistenza elettrica; 6. Elettrovalvola a 3-vie (disponibile come accessorio); 7. Serbatoio inerziale (parte del prodotto Akuakombi); 8. Fancoil; 9. Radiatori; 10. Sonda temp. riscaldamento a pavimento (di serie); 11. Circuito di riscaldamento a pavimento; 12. Sonda temp. serbatoio acqua calda (di serie); 13. Bollitore sanitario/accumulo inerziale Akuakombi; 14. Sonda temp. solare (di serie); 15. Elettrovalvola miscelatrice riscaldamento a pavimento
