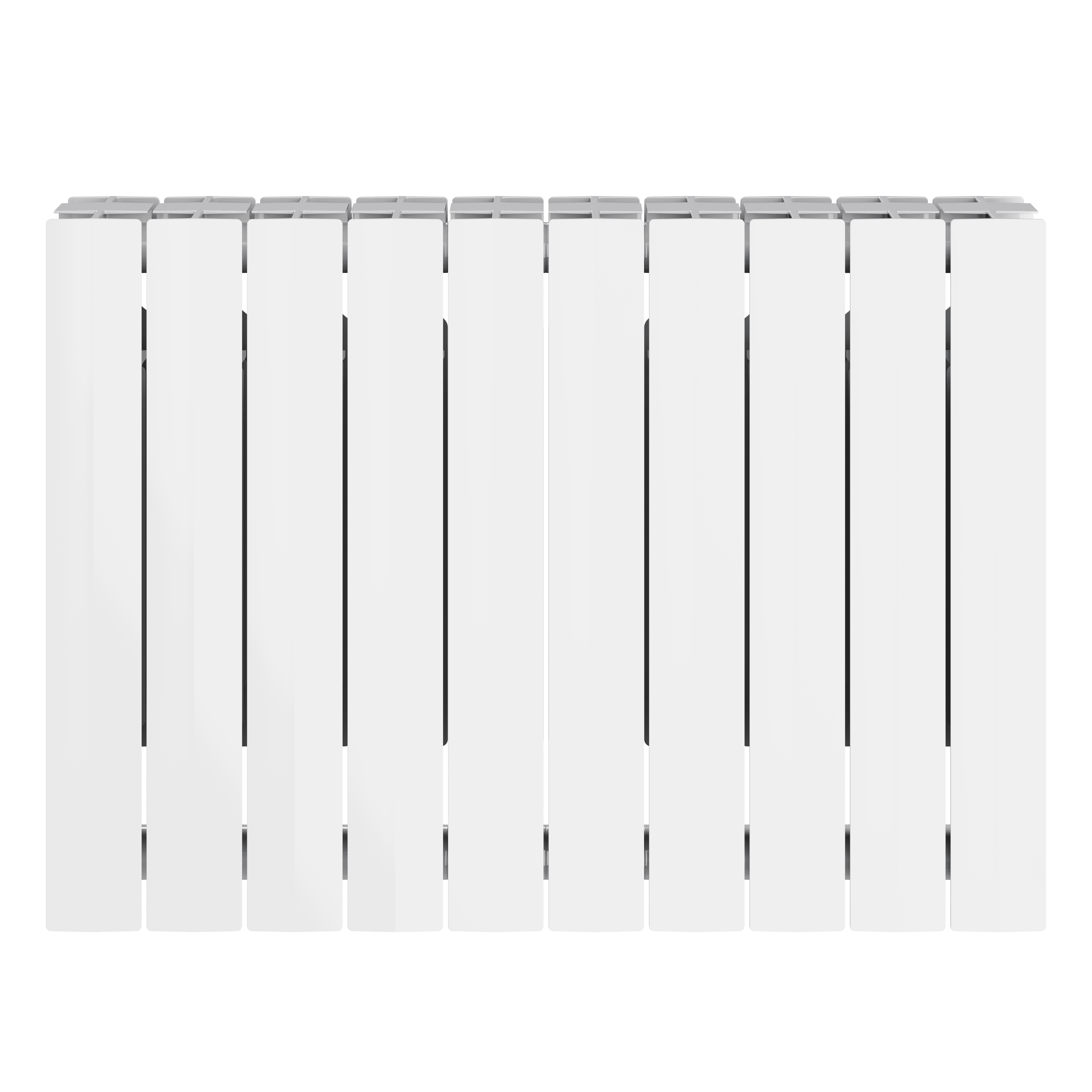

Elena 500

Die-cast aluminum radiators

High reliability and long life

Aluminum is a circular material which is 100% recyclable helping the environment. Thanks to the high thermal conductivity, it heats the room very fast and uniformly. This increase your energy saving.

Features

  • High thermal efficiency both at high and low water temperature
  • The best for traditional high temperature radiator systems and new low temperature radiator systems (with heat pumps)
  • Estremely low thermal inertia – fast warm up
  • Perfect for the new installations and for the renovation
  • High corrosion resistance
  • High perception surface painting RAL 9016, long lasting and nice design impact
  • Double layer process to protect from corrosion, epossidic powder painting process
  • Size available with axis 500mm
  • Finish good code available with 10 elements
  • Easy to customize the radiator elements composition with accessory tool
  • The radiator fit any room specification of thermal load and design appearance

Product line Elena

Codice Axes (mm) Elements (no.) Weight (kg) Dimension (mm) Output (W) ΔT 50 Qty. per pallet
Elena 500/10 30001758 500 10 13 800 x 580 x 95 1.167 22

Documents

Elena 500
